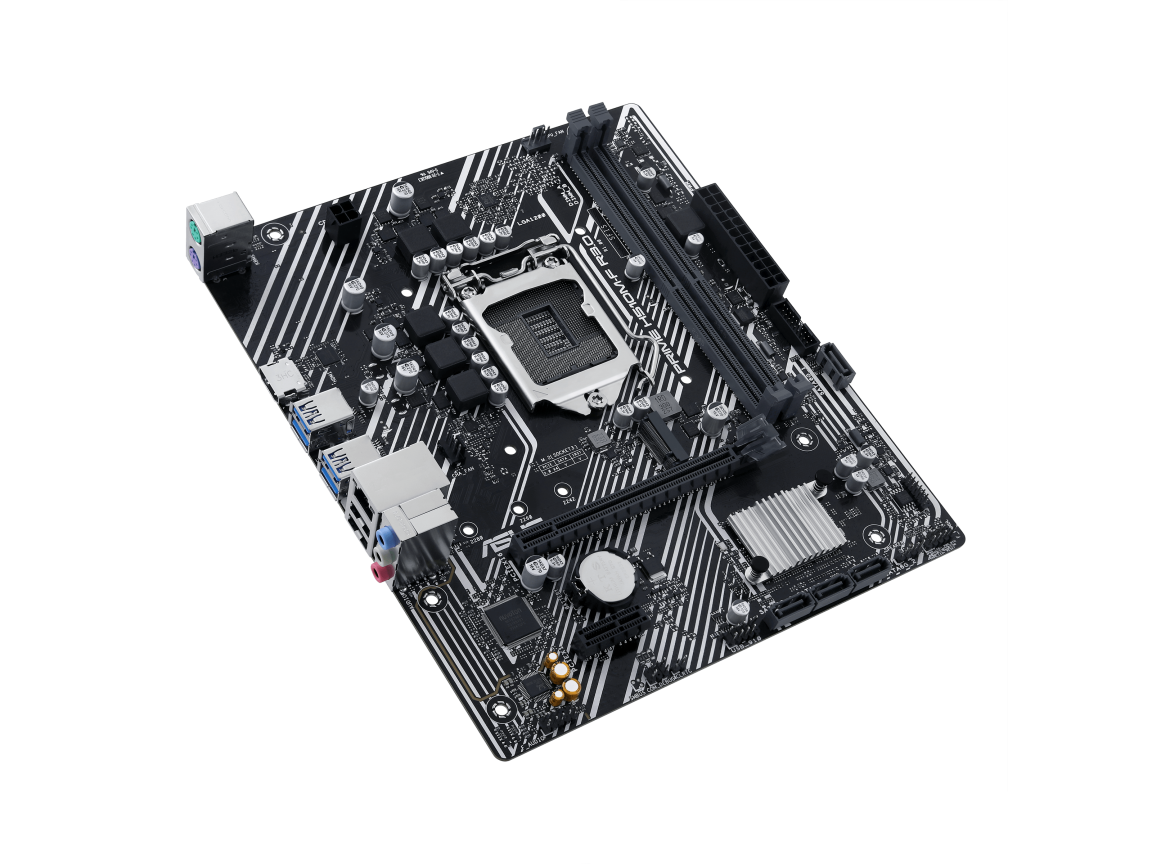

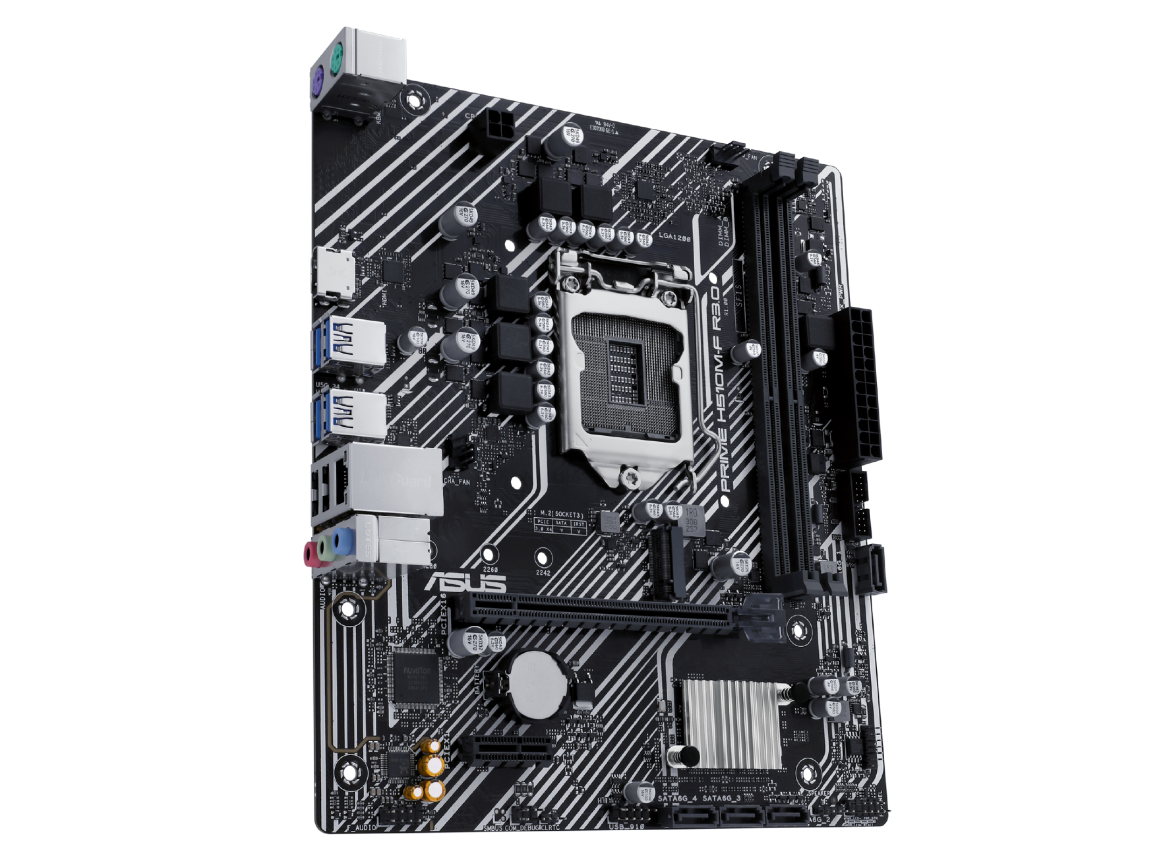

MBO ASUS PRIME H510M-F R3.0 mATX/LGA1200/2xDDR4 3200/1xM.2/4xSATA/6xUSB/1XHDMI/2xPS/2 /1X1Gb/10TH 11TH GEN

Model

PRIME H510M-F R3.0

CPU

• Intel^® Socket LGA1200 for 11^th Gen Intel^® Core^™ Processors & 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors*
• Supports up to Intel^® 65W CPU
• Supports Intel^® 14 nm CPU
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• * Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® H470 Chipset

Memory

• 2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel^® Extreme Memory Profile (XMP)
• * 10^th Gen Intel^® Core^™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
• * 11^th Gen Intel^® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics

• 1 x HDMI^™ port**
• * Graphics specifications may vary between CPU types.
• ** Only Intel^® 11^th Gen processors support HDMI^™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI^™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Expansion Slots

• Intel^® 11^th & 10^th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot
• - Intel^® 11^th Gen processors support PCIe 4.0 x16
• - Intel^® 10^th Gen processors support PCIe 3.0 x16
• Intel^® H470 Chipset
• 1 x PCIe 3.0 x1 slot

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel^® H470 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 4 ports)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

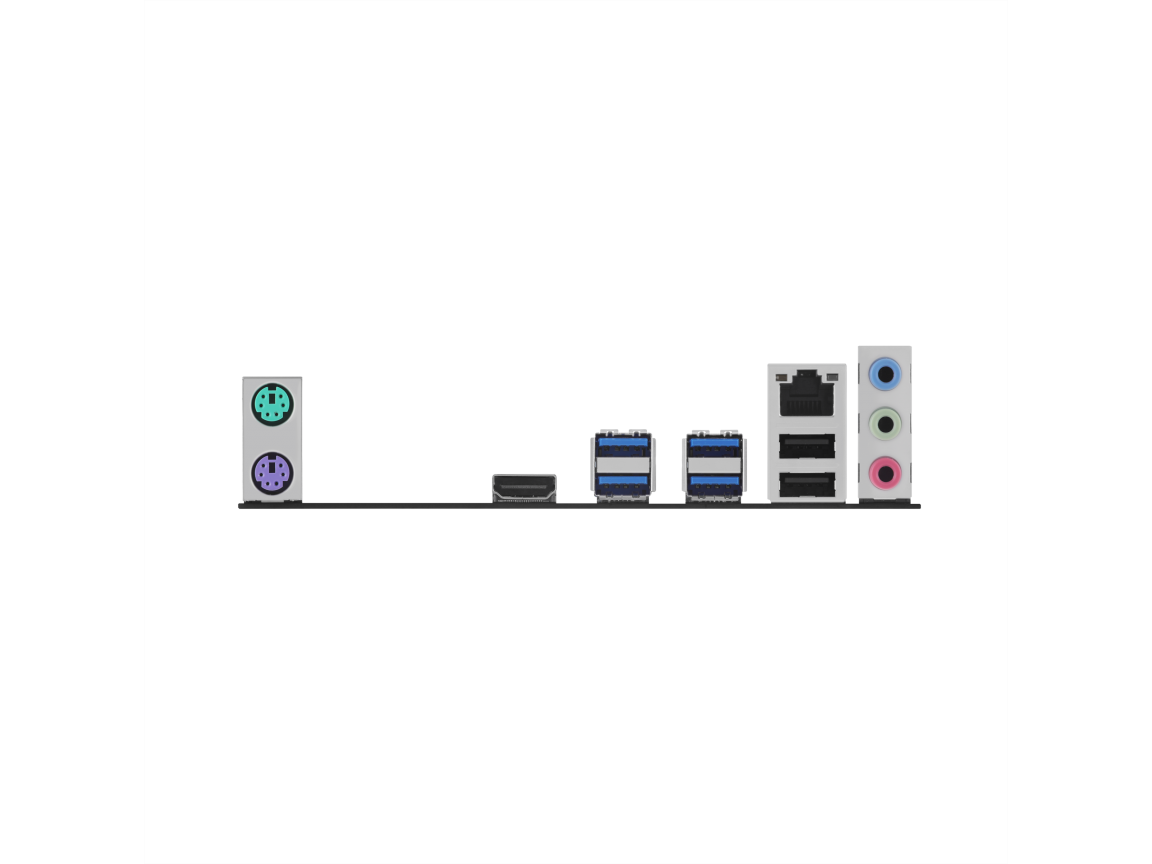

Back Panel I/O Ports

• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x HDMI^™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps header supports 2 additional 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design

Software Features

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• - Performance And Power Saving Utility
•  TurboV EVO
•  EPU
•  DIGI+ VRM
• - EZ update
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

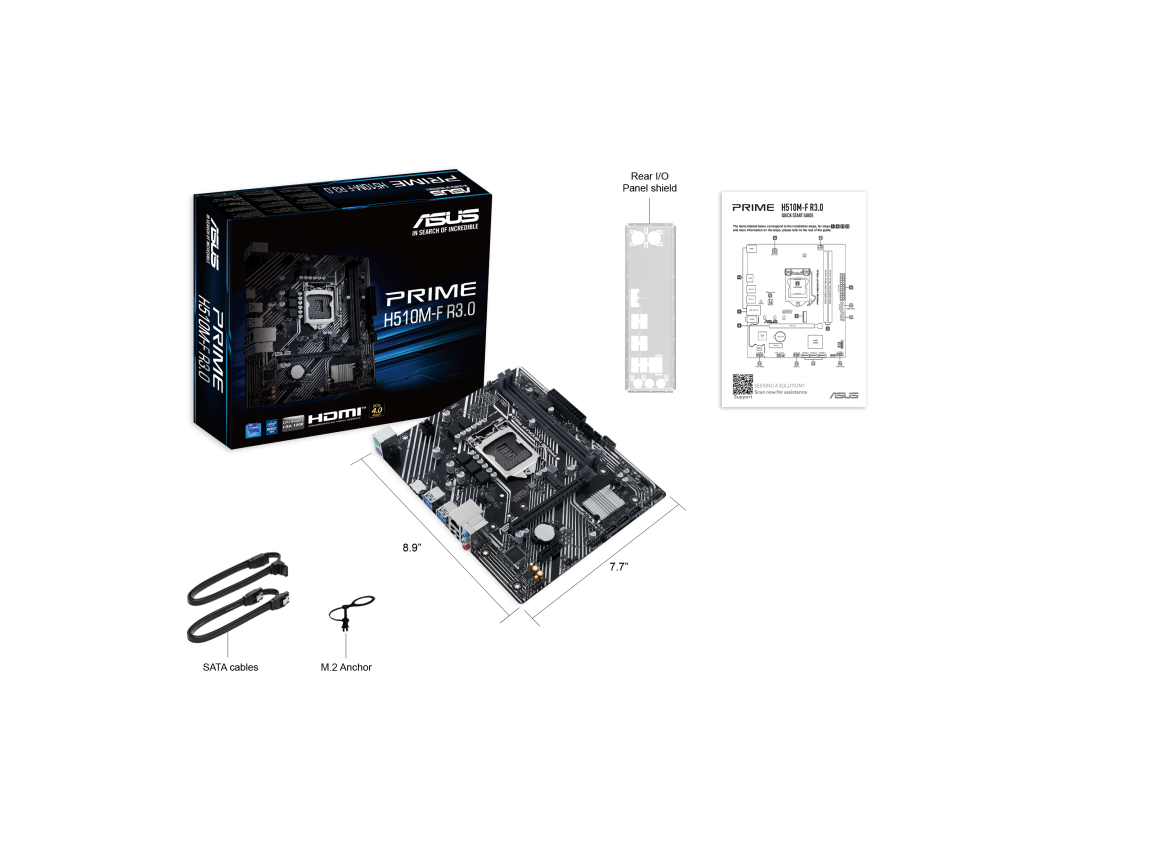

Accessories

Cables

• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 Anchor
• Documentation
• 1 x Quick start guide

Operating System

Windows^® 10 64-bit

Form Factor

mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
