ESPECIFICACIONES
CPU
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
Chipset
Intel® B460
Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphic
1 x DisplayPort 1.4 **
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel® B460 Chipset
3 x PCIe 3.0 x1 *2
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x4 mode) *1
1 x PCIe 3.0 x16
Storage
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
Intel® B460 Chipset :
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN
Intel® I219-V 1Gb Ethernet
ASUS LANGuard
Wireless Data Network
M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.
Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
- Audio Cover
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
Rear USB Port ( Total 7 )
Front USB Port ( Total 6 )
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features
[ROG Exclusive Software]
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
[ASUS Exclusive Software]
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility: TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
- EZ update
ASUS CPU-Z
DAEMON Tools
WinRAR
[UEFI BIOS]
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
Rear audio USB Type-C® connector

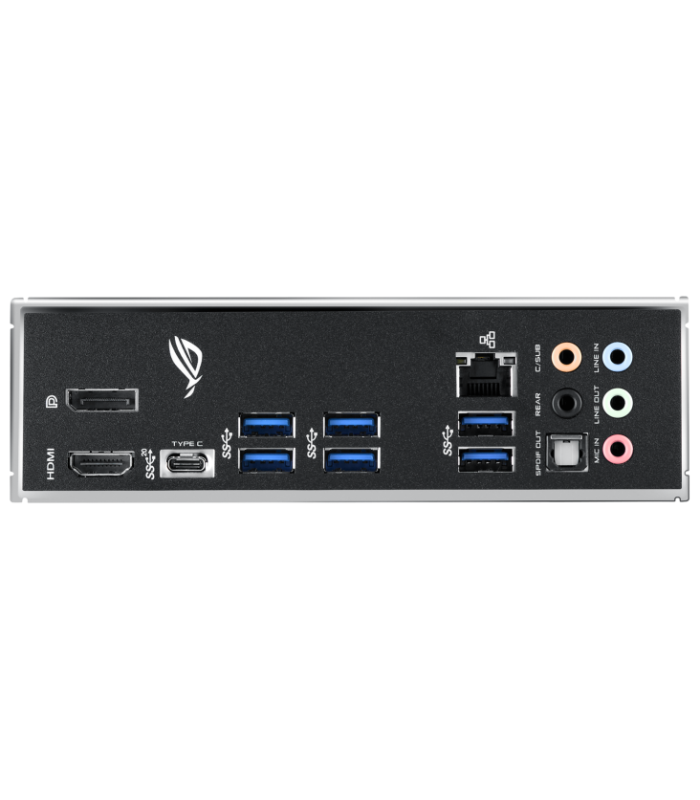

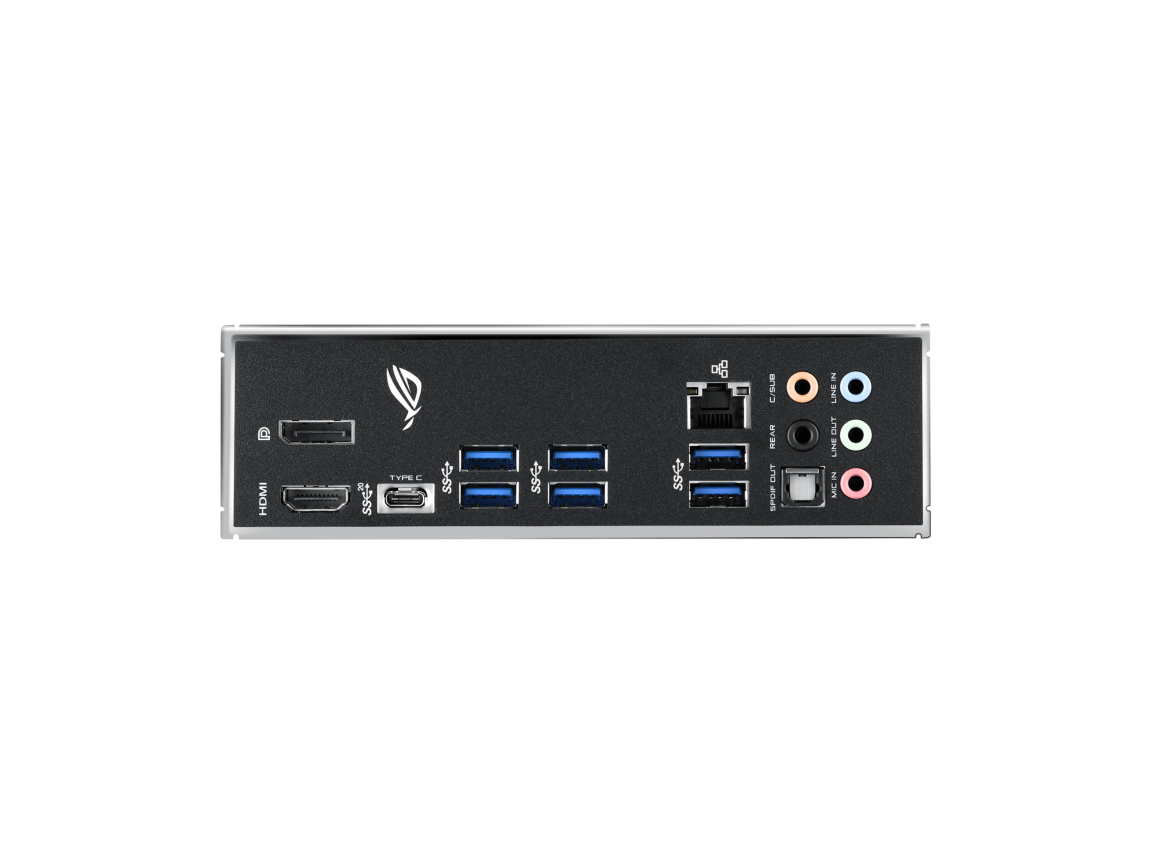

Back I/O Ports
1 x Intel® I219-V 1Gb Ethernet
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
6 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Aura RGB Strip Headers
2 x M.2 Socket 3
1 x Thunderbolt header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel connector

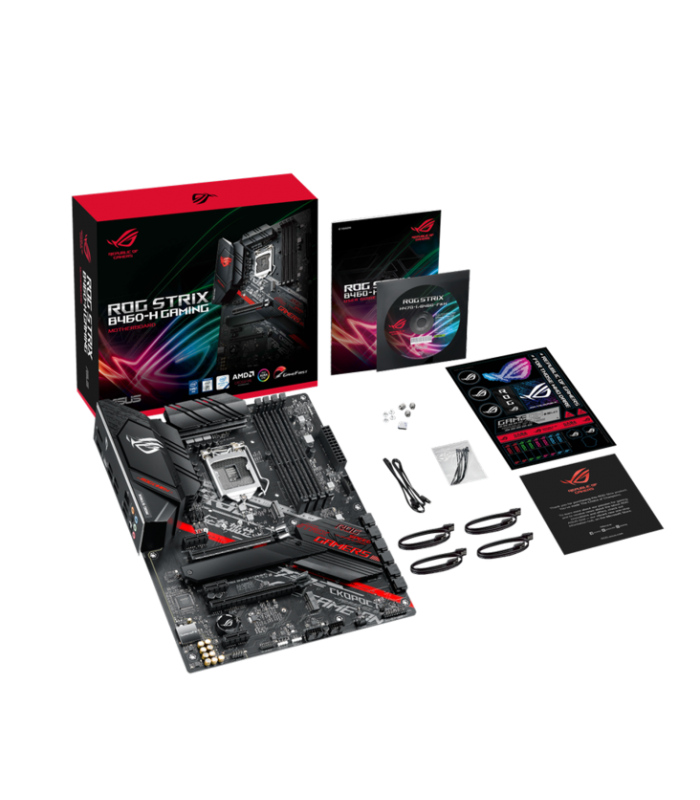

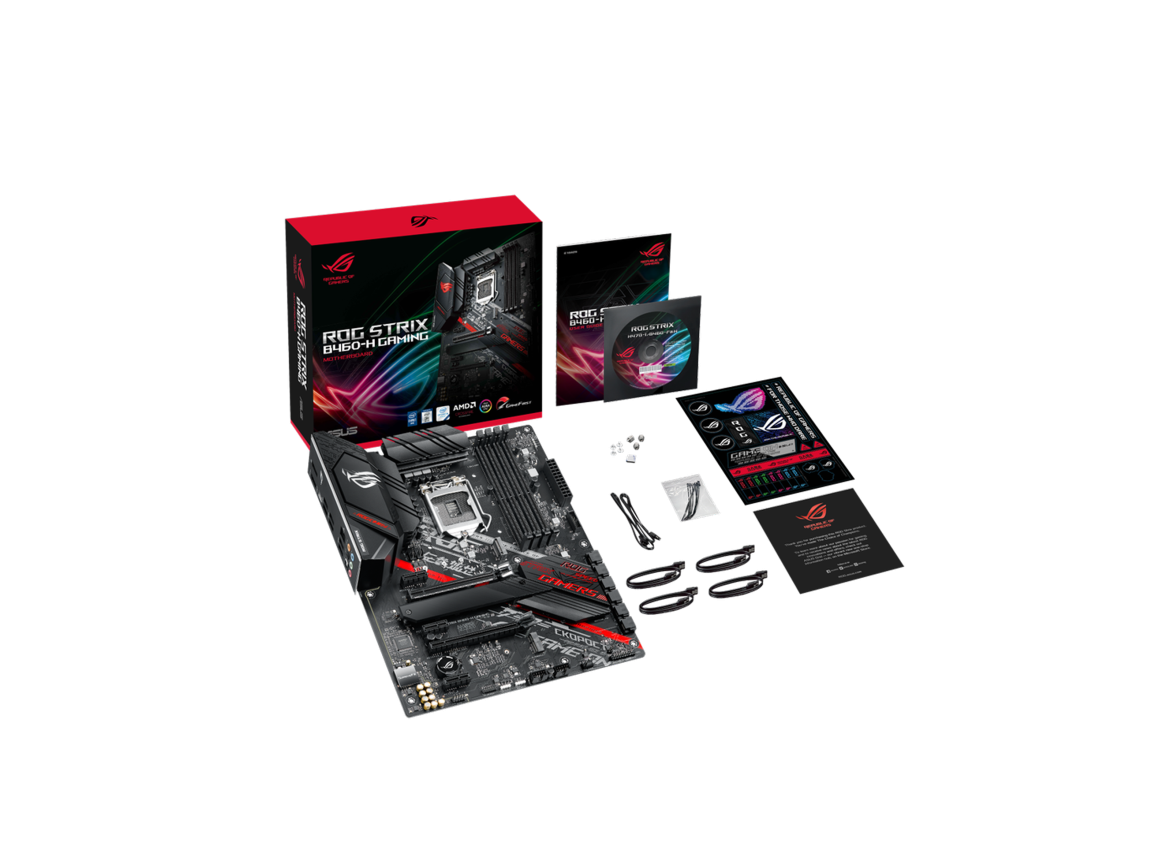

Accessories
1 xM.2 Key E screw package(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
1 x pack of cable tie
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Extension cable for Addressable LED
1 x ROG Thank you card
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 The PCIEX16_2 shares bandwidth with the PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3 will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is occupied.
*2 The PCIEX1_1 and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth with M.2 slot (Key E).
*3 When M.2_1 is operating in SATA mode, SATA6G_1 will be disabled.
