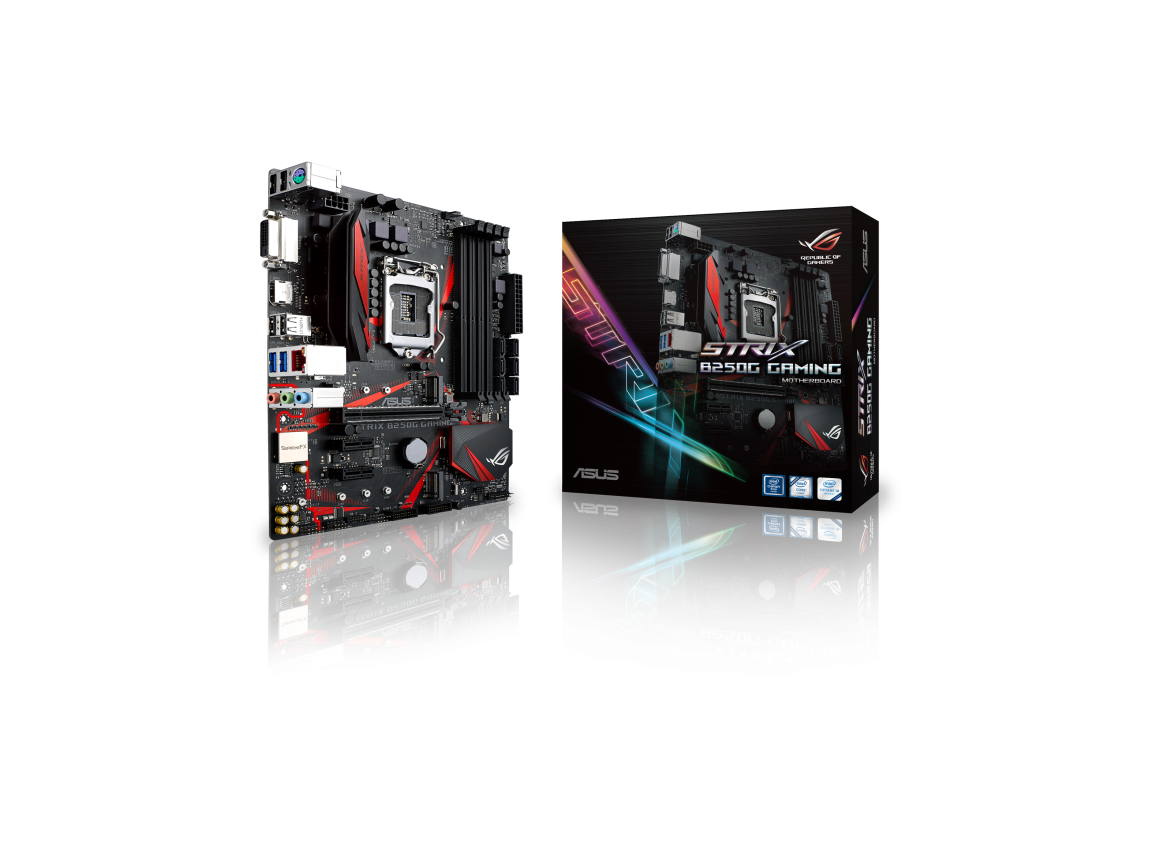

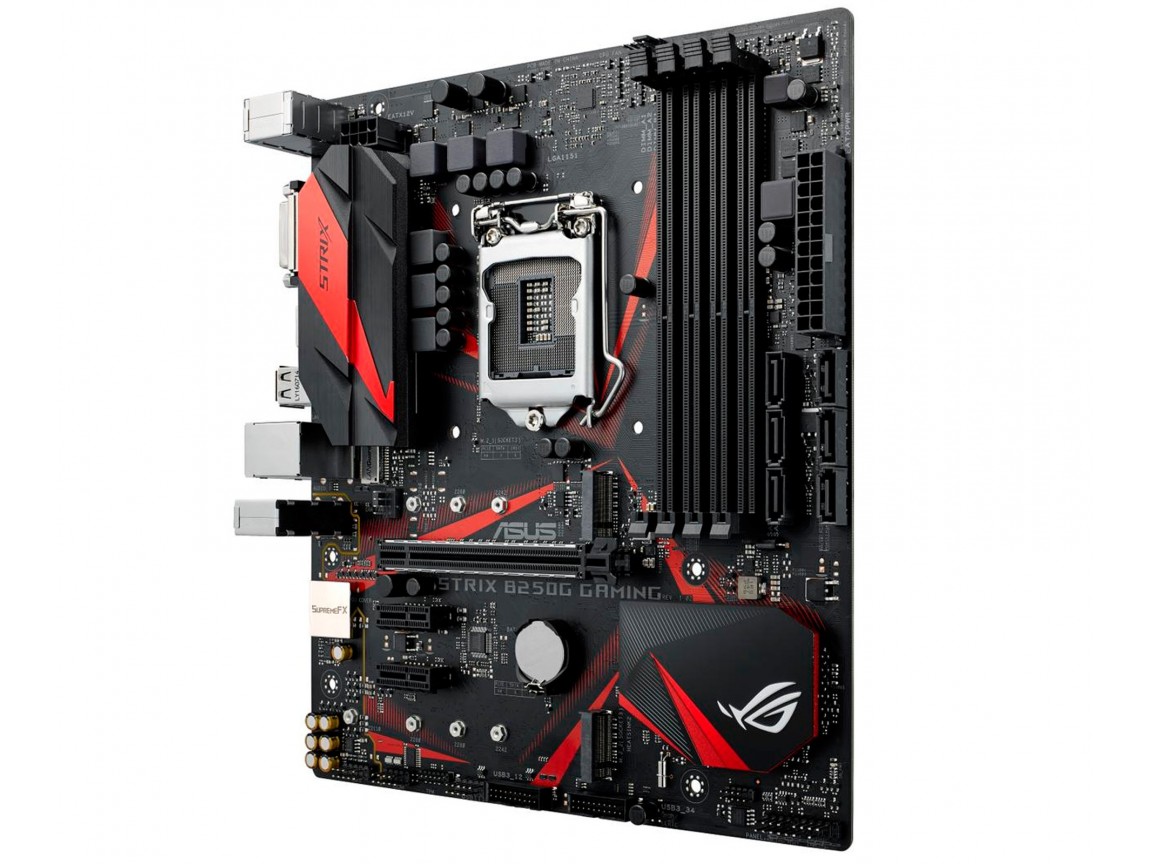

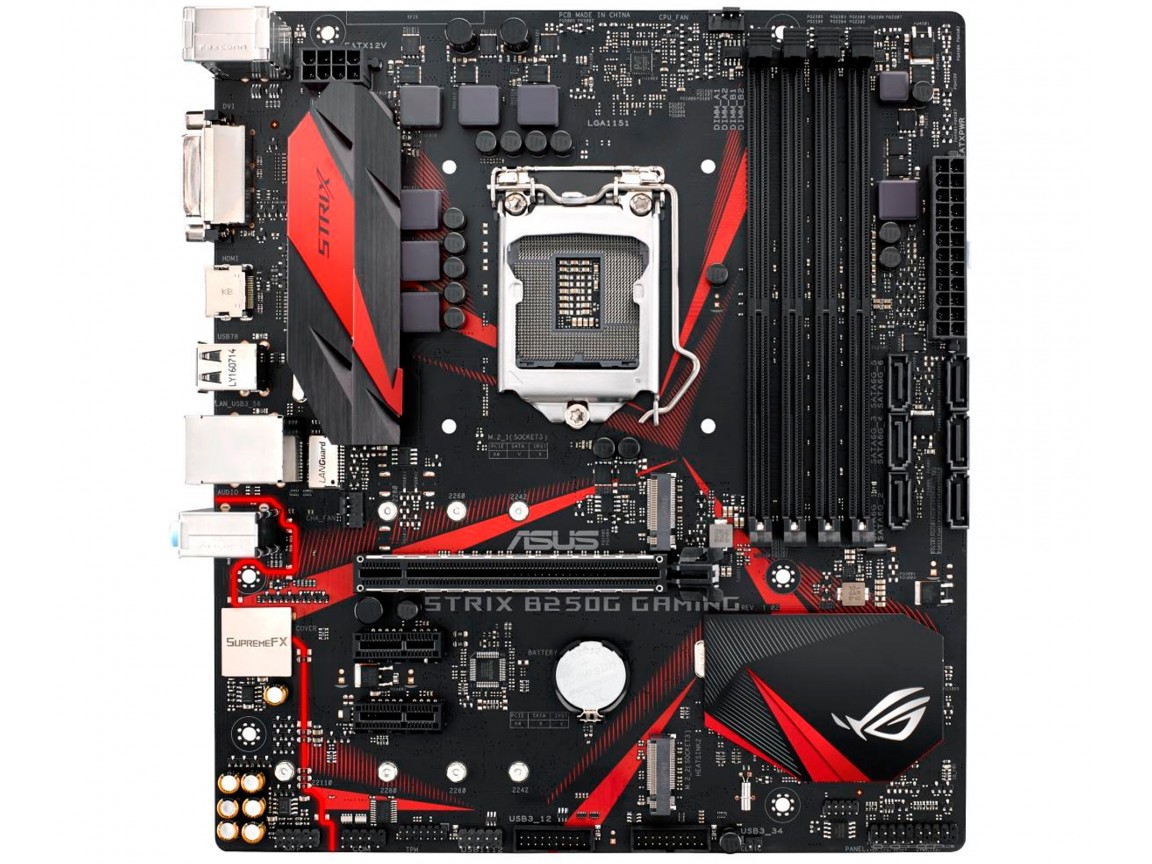

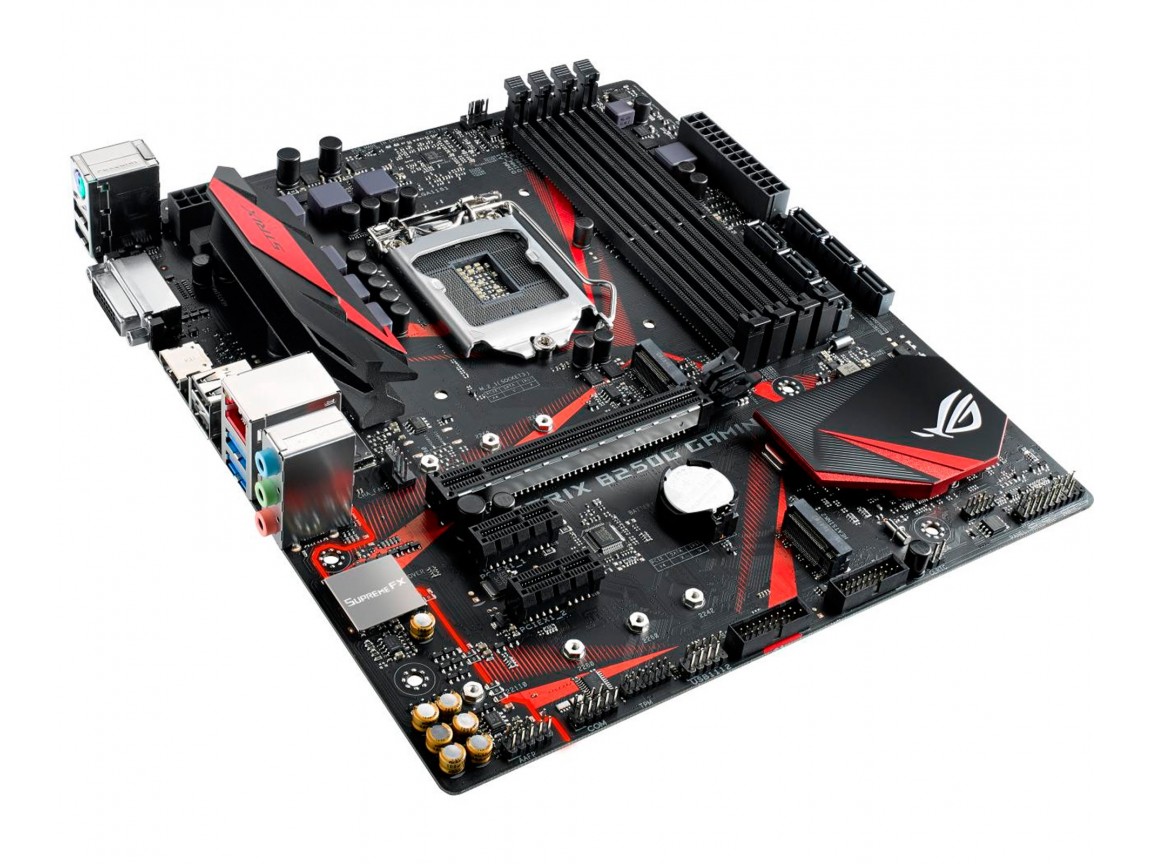

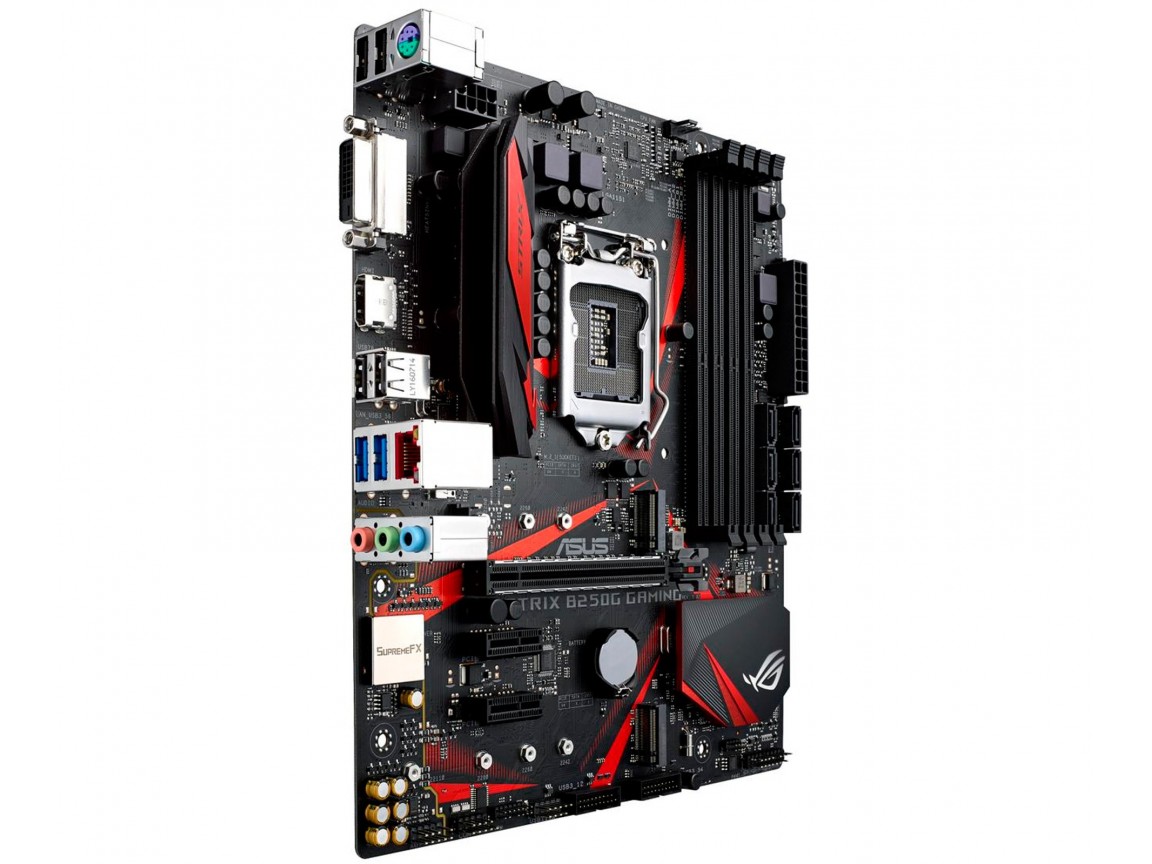

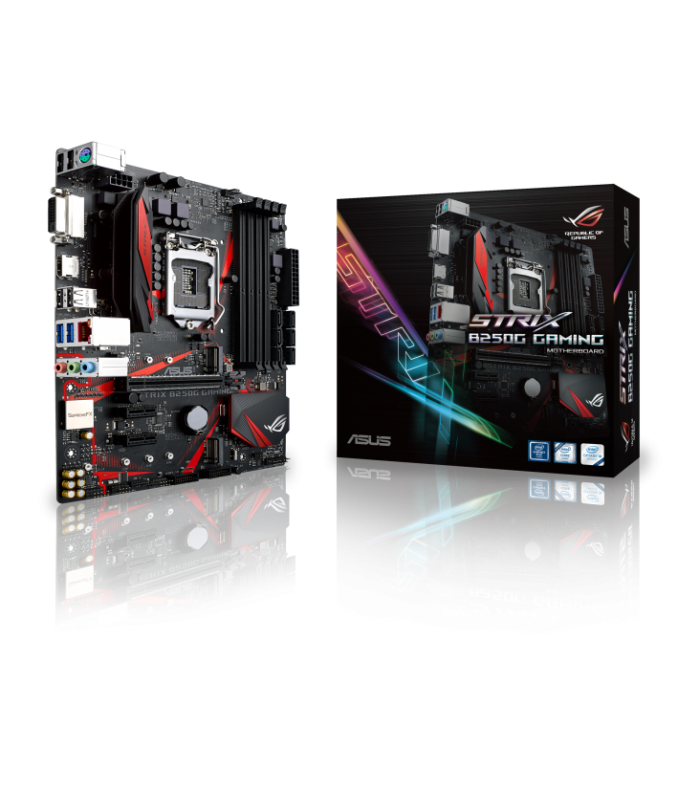

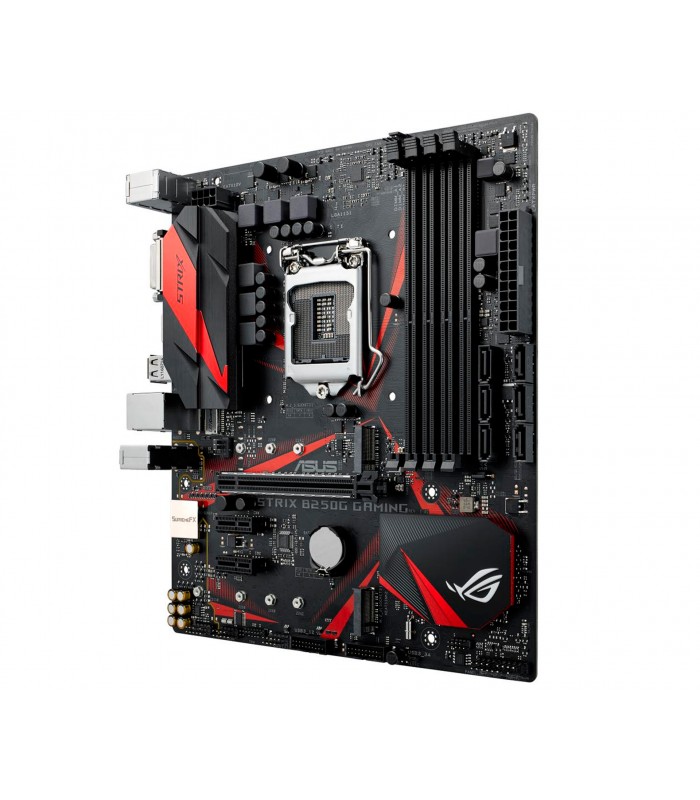

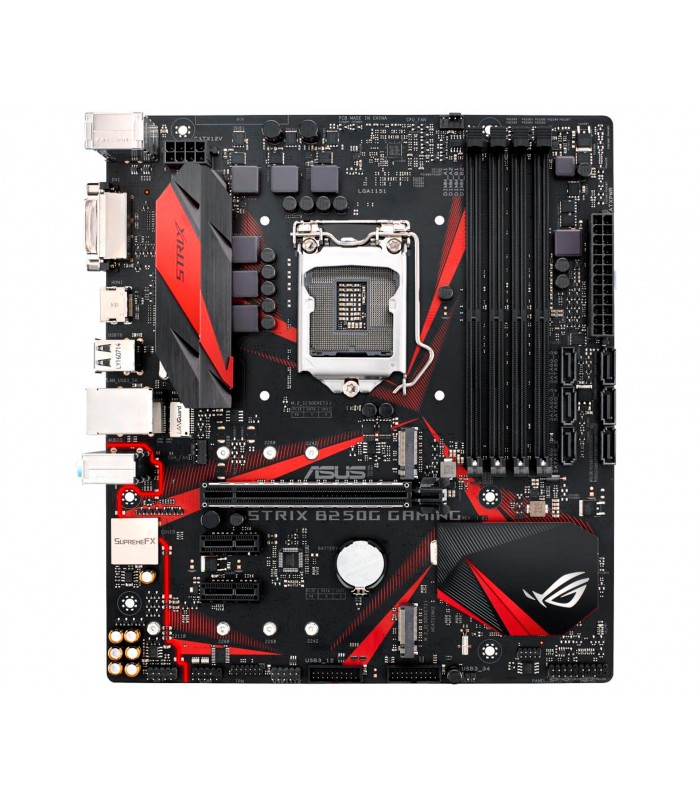

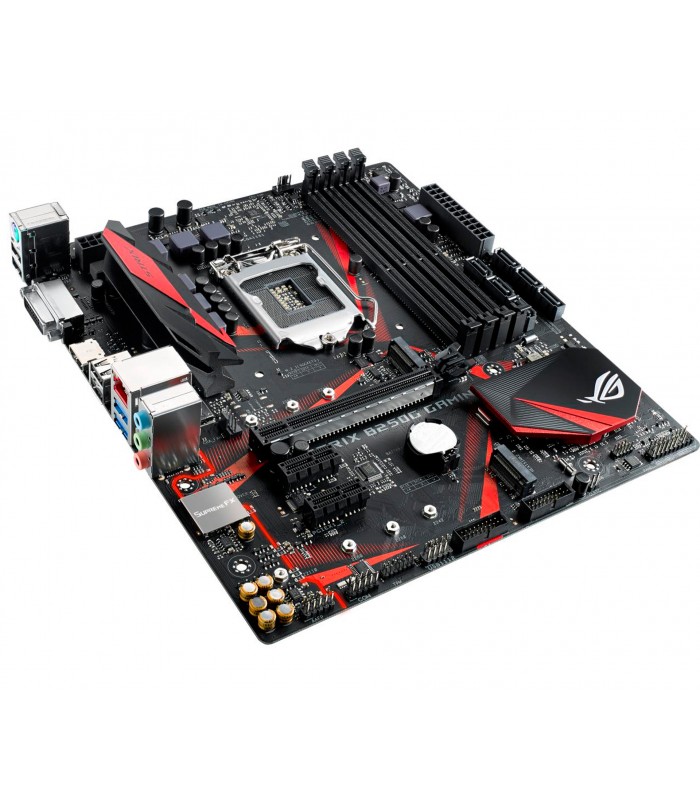

MBO ASUS ROG STRIX B250G GAMING mATX/LGA1151/4xDDR4 2400/6XSATA/6X USB/1X HDMI/1X PCIE3.0/2X M.2/ 6TH 7TH

CPU

• Build in Intel® Socket 1151for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors *
• Supports Intel® 14nm CPU
• Supports Intel® Turbo Boost Technology 2.0
• * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• * Refer to www.asus.com for CPU support list

Chipset

Build in Intel® B250

Memory

• 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
• * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
• ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Supports Intel® Extreme Memory Profile (XMP)

Graphic

• Multi-VGA output support : HDMI/DVI ports
• Integrated Graphics Processor- Intel® HD Graphics support
• - Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
• - Supports DVI with max. resolution 1920 x 1200 @ 60Hz
• Maximum shared memory of 1024 MB (for iGPU exclusively)
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x1 (x16 mode)

2 x PCIe 3.0/2.0 x1

Storage

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*

Intel® B250 Chipset :

• 6 x SATA 6Gb/s port(s),
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• Intel® Optane™ Memory Ready *

LAN

Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

Anti-surge LANGuard

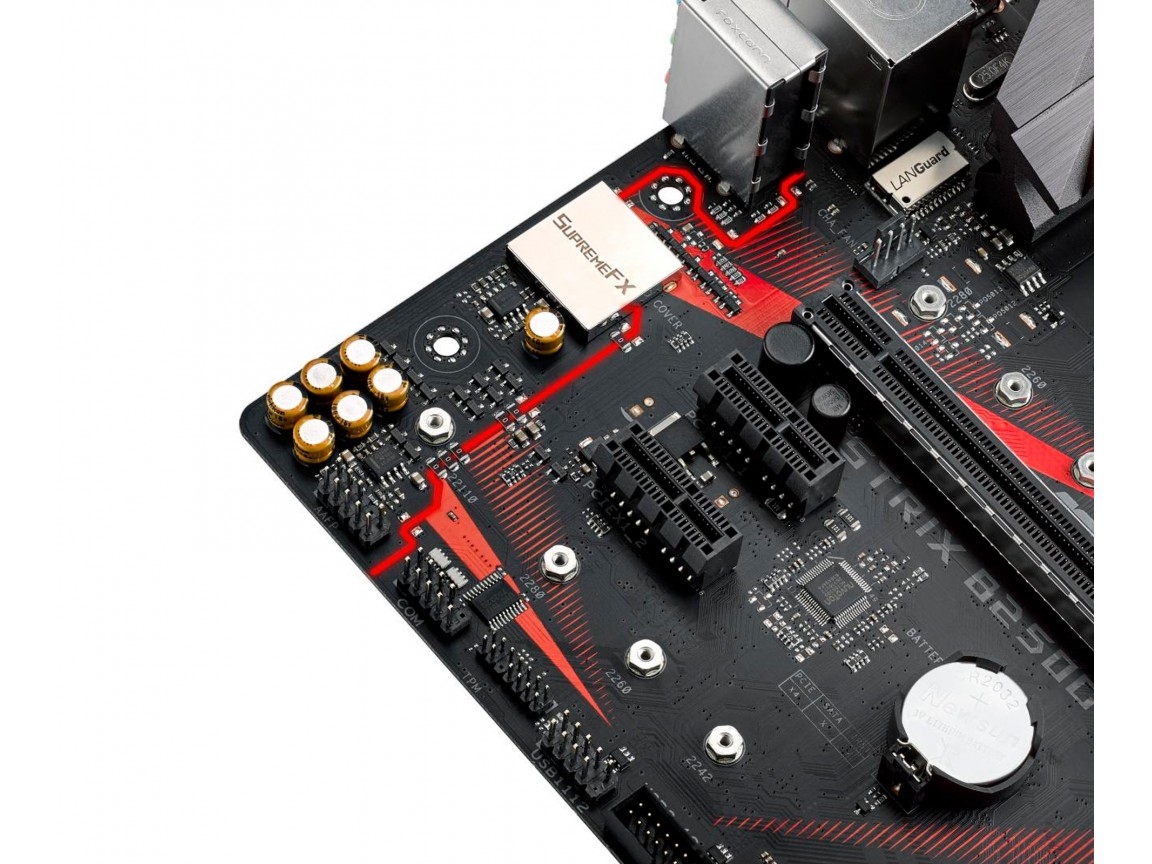

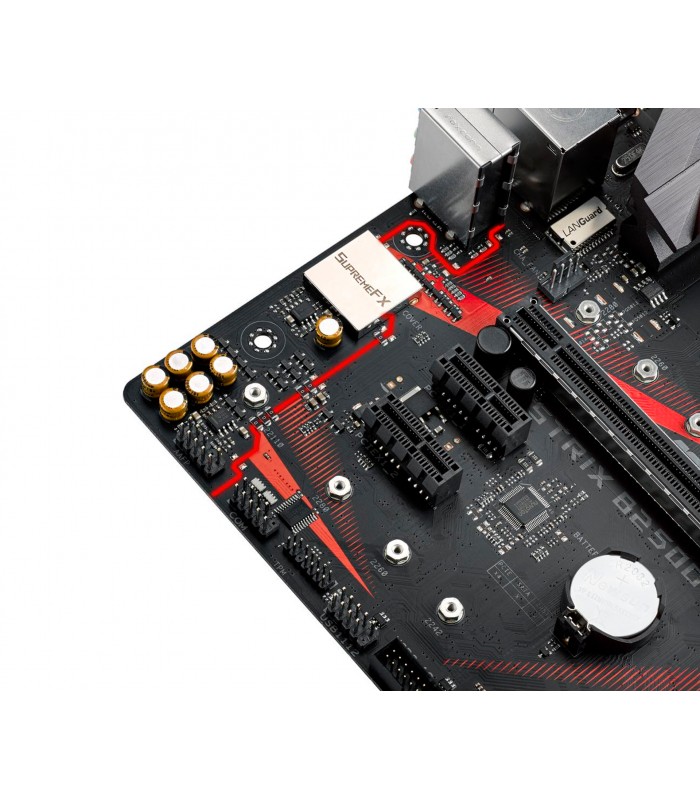

Audio

• - Supports up to 32-Bit/192kHz playback *1
• - Sonic Studio III
• Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
• SupremeFX8-Channel High Definition Audio CODEC S1220A
• - Dual Headphone Amplifiers
• - Impedance sense for front and rear headphone outputs
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality120dBSNR stereo playback outputand113dBSNR recording input
• - SupremeFX Shielding Technology
• Audio Feature :
• - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
• - Sonic Radar III

USB Ports

6 x USB 3.0 port(s) (2 at back panel, , 4 at mid-board)

Intel® B250 Chipset :

6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

ROG Exclusive Features

ROG CPU-Z

Overwolf

Special Features

GPU Boost

Fan Xpert 3

• - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports

Gamer´s Guardian:

• - DRAM Overcurrent Protection
• - Stainless Steel Back I/O
• - Highly Durable components
• - Digi+ VRM
• - SafeSlot

ASUS Exclusive Features :

• - AI Suite 3
• - Ai Charger
• - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS EZ DIY :

• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS MyLogo

ASUS Q-Design :

• - ASUS Q-Shield
• - ASUS Q-Slot
• - ASUS Q-DIMM

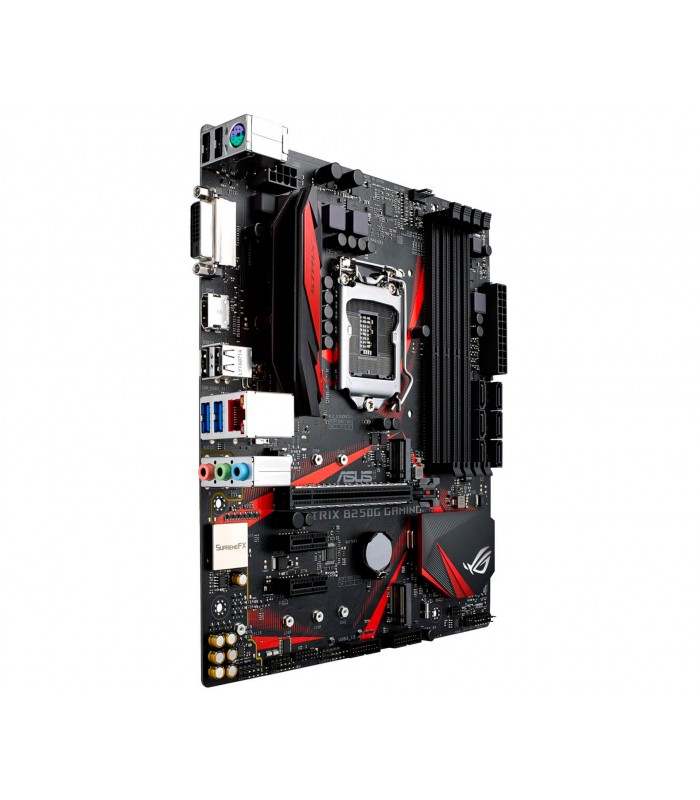

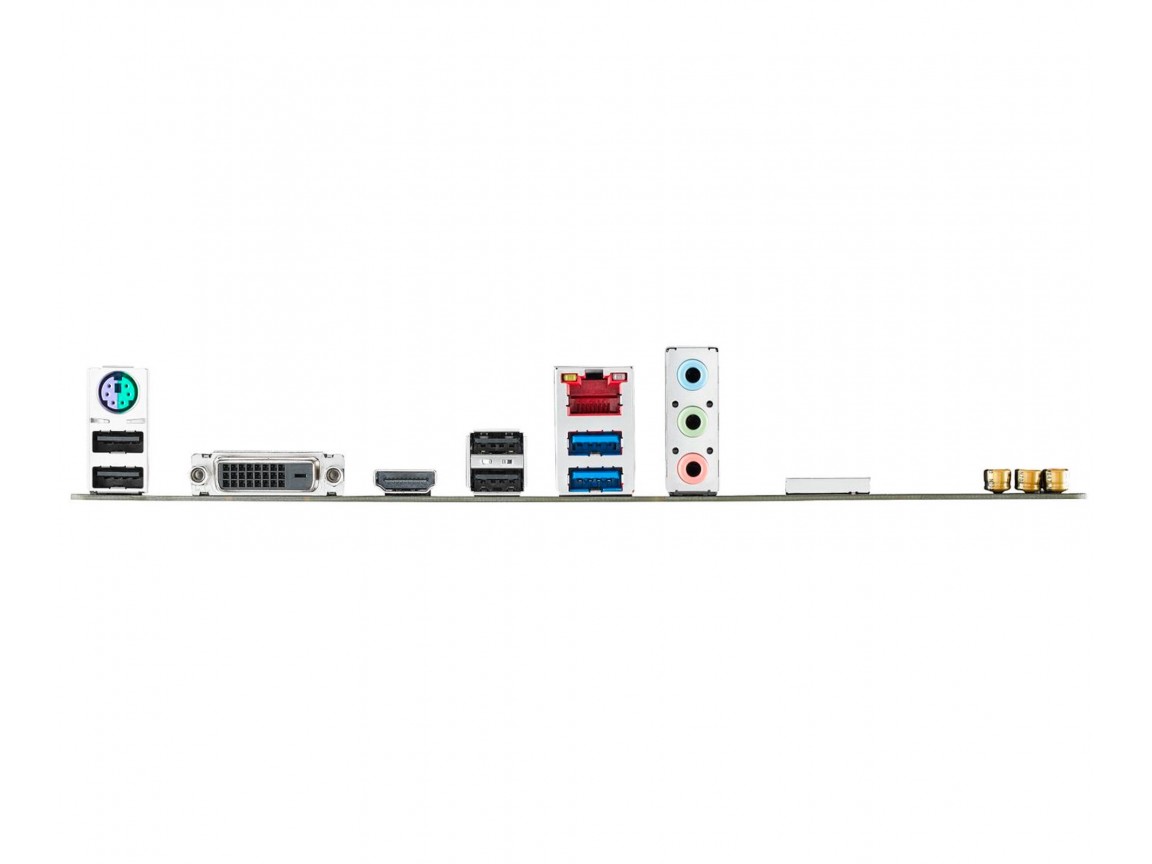

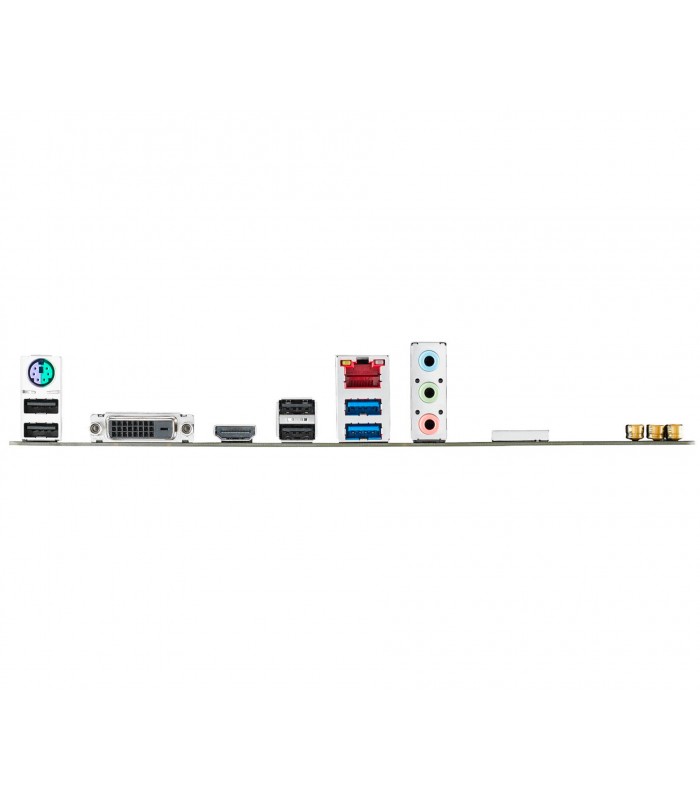

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 2.0
• 2 x USB 3.1 Gen 1
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x AAFP connector
• 1 x CPU Fan connector(s) ( x 4-pin)
• 1 x Chassis Fan connector(s) ( x 4-pin)
• 1 x 8-pin EATX 12V Power connector
• 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector

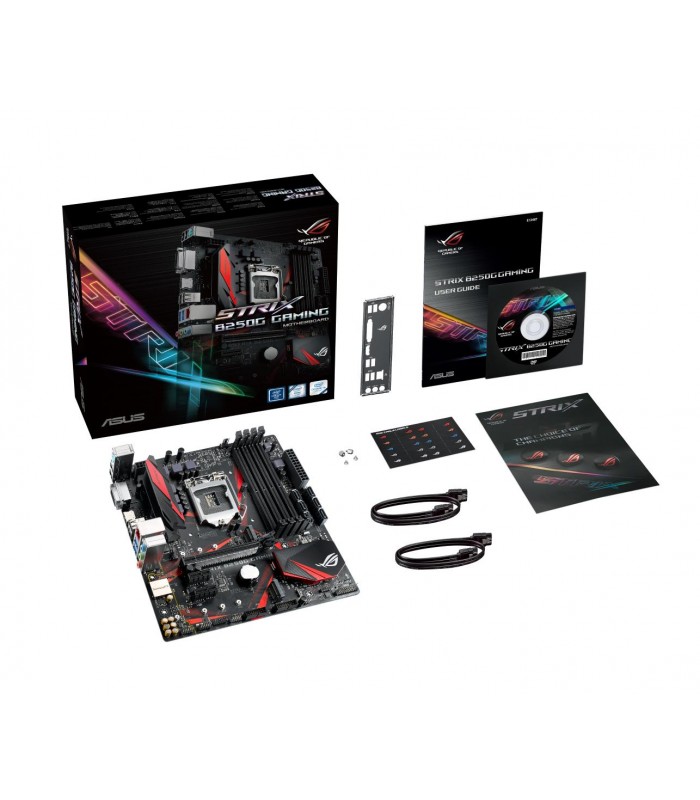

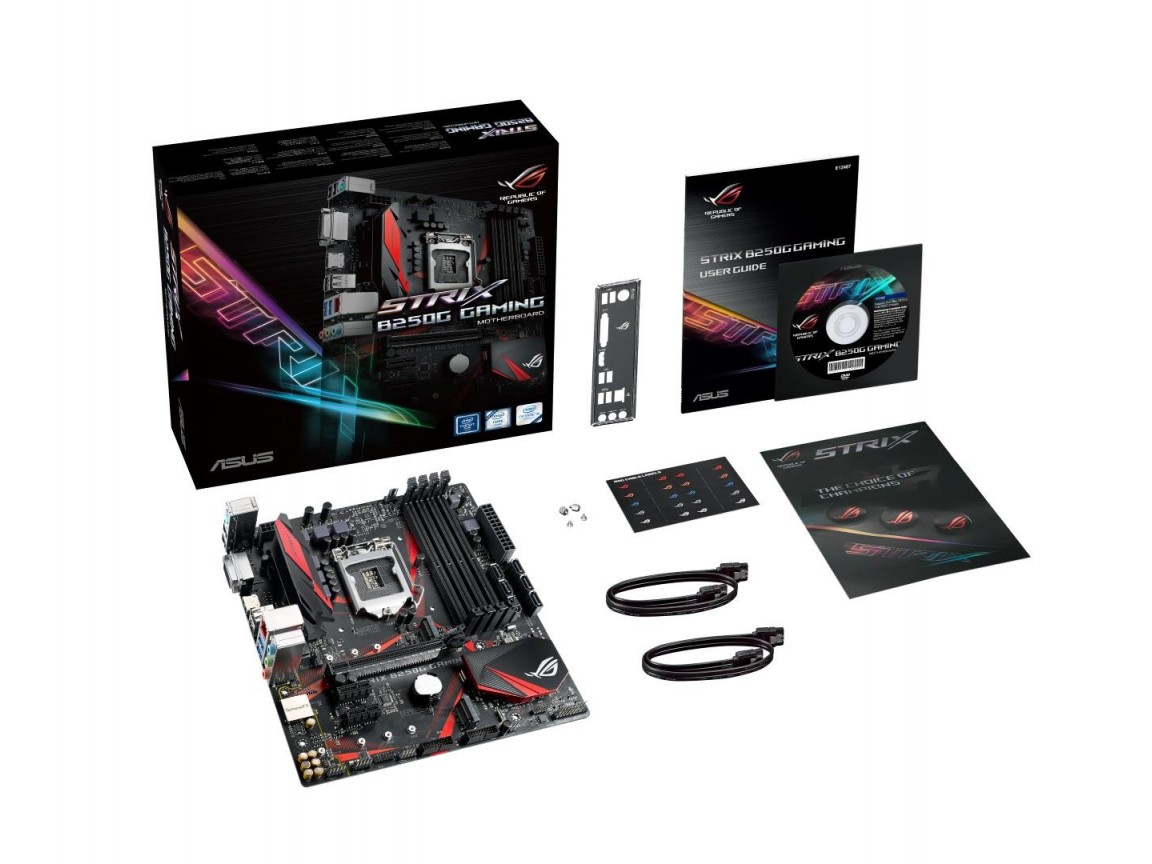

Accessories

• 2 x SATA 6Gb/s cable(s)
• 1 x 10-in-1 ROG cable label
• User´s manual
• I/O Shield
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x ROG Strix stickers

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3,
• CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM2.0, DMI3.0, WOL by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• EZ Update
• Anti-virus software (OEM version)

Operating System

• *2
• Windows® 8.1 64-bit *1
• Windows® 7 32-bit *1
• Windows® 10 64-bit
• Windows® 7 64-bit *1

Form Factor

• 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
• mATX Form Factor

Note

*1 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7.

*2 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
