MBO ASUS PRIME H610M-K D4 /LGA1700/2X DDR4 3200/1xPS/2 /4X SATA/6X USB/1X VGA/1X HDMI/1X PCIE/1X M.2/ 12TH 13TH

ESPECIFICACIONES

CPU

Intel^® Socket LGA1700 for 13^th Gen Intel^® Core^™ Processors & 12^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors*

Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

1 x D-Sub port

1 x HDMI^® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel^® 13^th & 12^th Gen Processors

1 x PCIe 4.0 x16 slot

Intel^® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel^® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

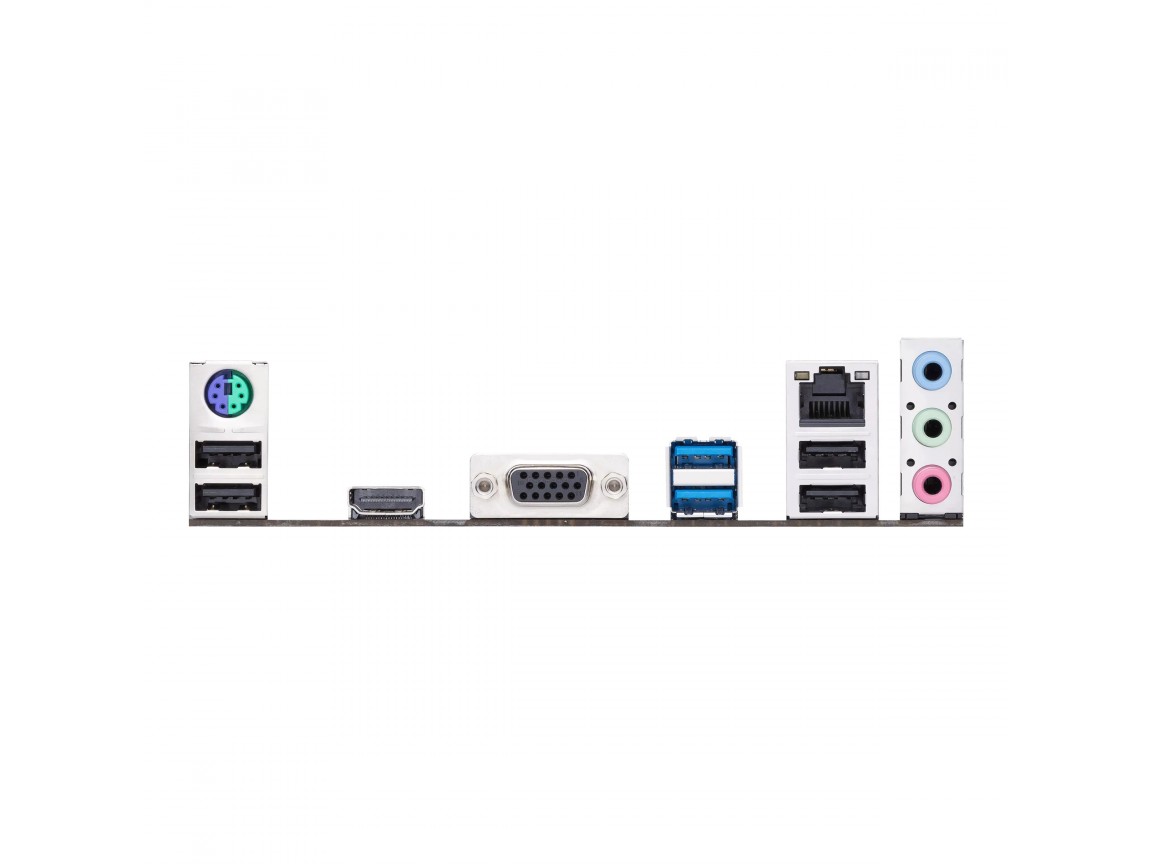

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x D-Sub port
• 1 x HDMI^® port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

Storage related

• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

• 1 x RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS Lighting Control

- RGB header

Software Features

ASUS Exclusive Software

• Armoury Crate
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert
• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR

UEFI BIOS

• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

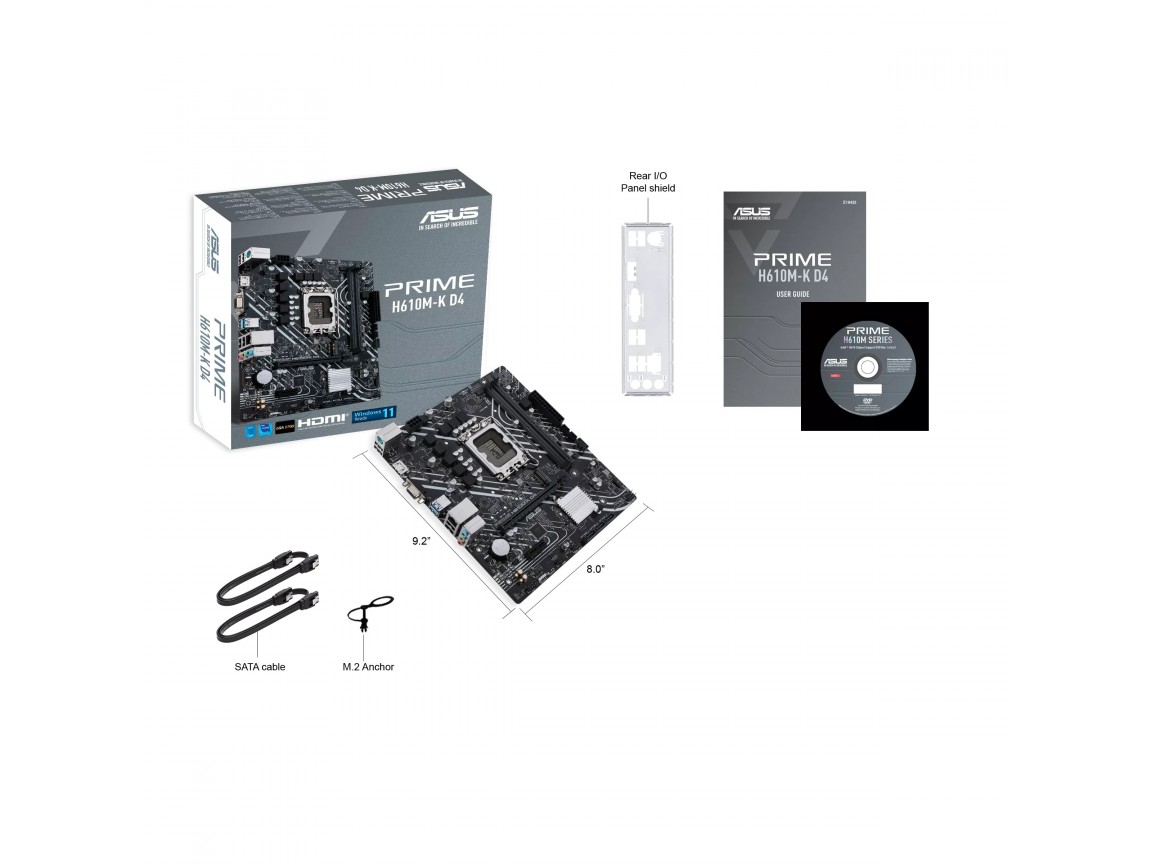

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

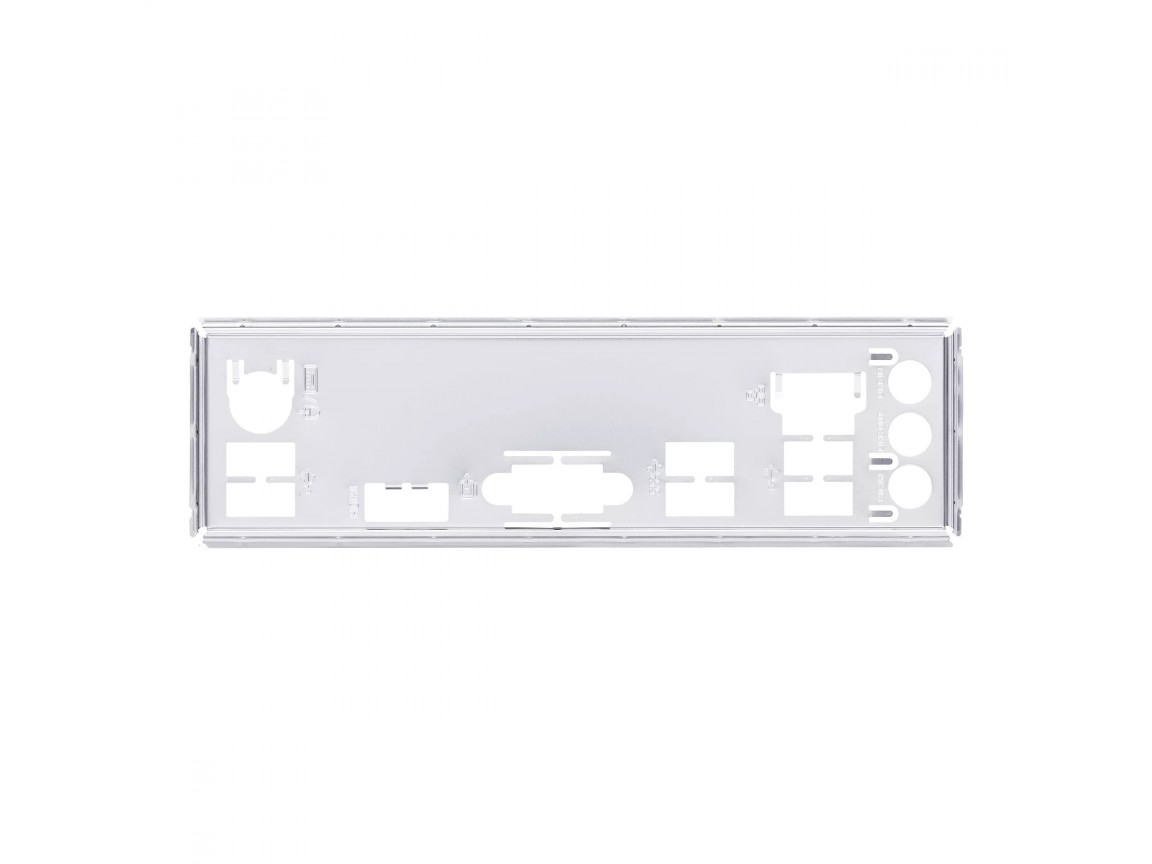

1 x I/O Shield

1 x M.2 ANCHOR

Installation Media

1 x Support DVD

Documentation

1 x User Guide

Operating System

Windows^® 11 64-bit, Windows^® 10 64-bit

Form Factor

• mATX Form Factor
• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
